CHAPTER 2CHAPTER 2

CHAPTER 2

HARDHARD

HARD

ARE INSTARE INST

ARE INST

ALLAALLA

ALLA

TIONTION

TION

2-22

A. How to install a DIMM Module

1. The DIMM slot has 2 Notch Keys “VOLT and DRAM”, so the

DIMM memory module can only fit in one direction.

2. Insert the DIMM memory module vertically into the DIMM slot.

Then push it in.

3. The plastic clip at the side of the DIMM slot will automatically

close.

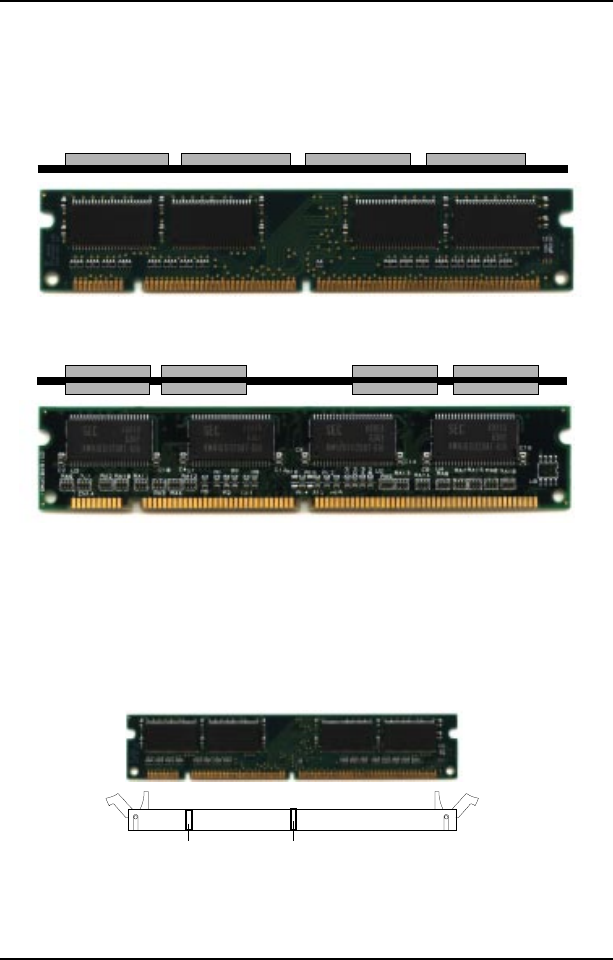

Single Sided DIMM

Double Sided DIMM

VOLTDRAM

2.3-2 Memory Installation Procedures
